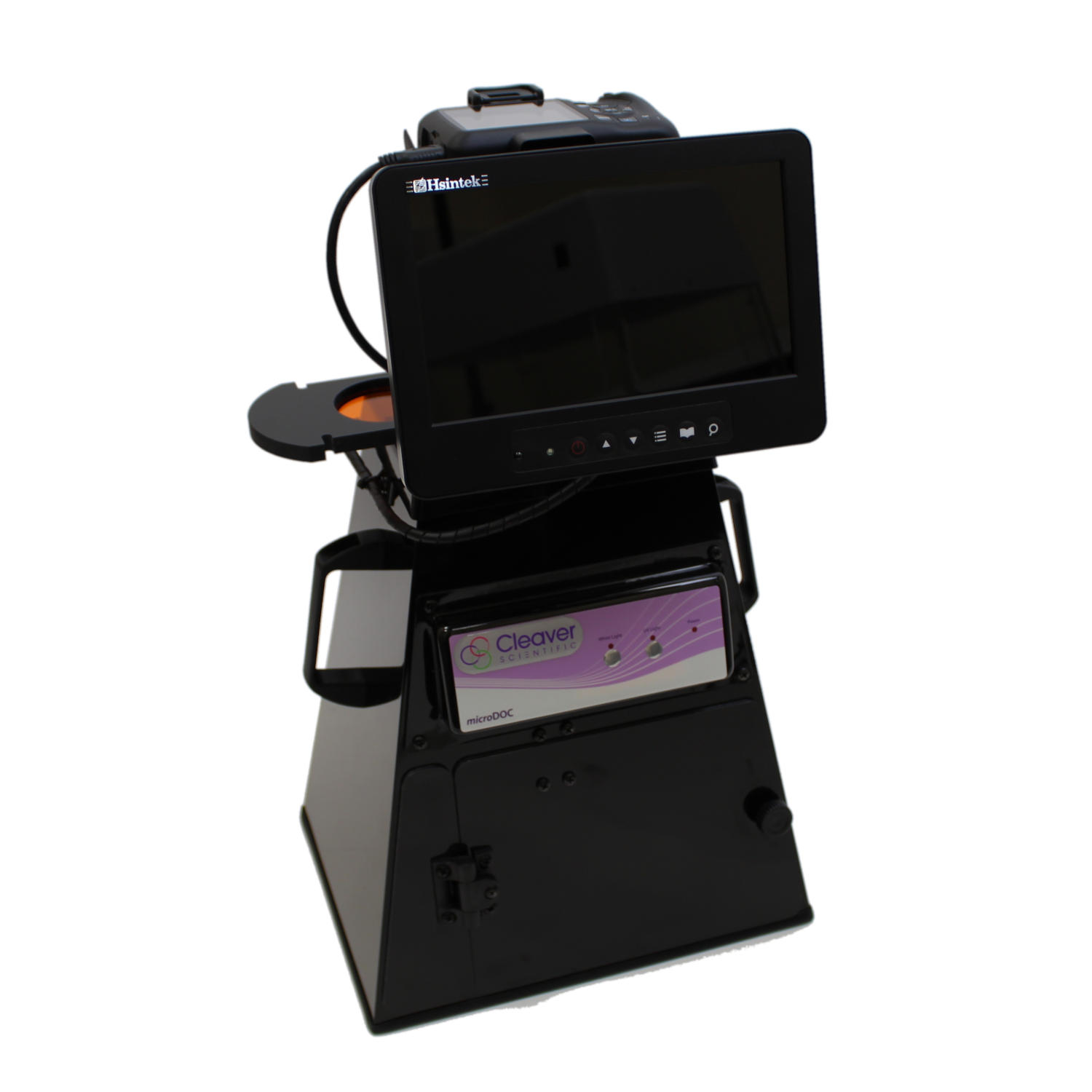

microDOC Gel Documentation Hood with Screen
- Digital camera with high-sensitivity CMOS sensor
- Image visualised within a large colour monitor
- Light weight compact hood with easy access door and built-in inner lights
- Safety switches disconnect the UV source when the easy access door is opened
The MicroDOC is the researcher’s choice for a simple ultra-compact gel documentation system that meets constraints in both budget and space within the laboratory. A large screen enables images, including agarose and fluorescent gels, colorimetric gels, autoradiography film and blotting membrane, to be captured in colour, clearly and easily. The system is computer-free and supplied with a storage card and 55mm ethidium bromide filter as standard, while an optional SYBR filter is also available. Files are saved onto the storage card in RAW, TIFF-RGB and JPEG formats and may be transferred to computer for analysis with the highly recommended TotalLab software.
This unit has a 12 month limited warranty, for more information, consult our terms and conditions.
Each microDOC unit includes:
- microDOC Hood with viewing screen
- Power Cable
- High resolution camera & accessories
- Memory card for image storage
- USB memory card adapter

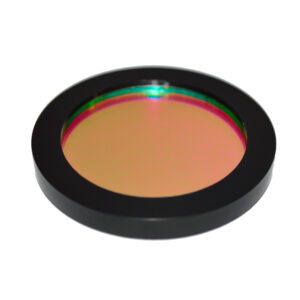

- Ethidium bromide UV Imaging Filter as standard.
- Instruction Manual
| SKU | CSL-MDOCUV254 | CSL-MDOCUV254/312 | CSL-MDOCUV254/3121D | CSL-MDOCUV254/365 | CSL-MDOCUV254/3651D | CSL-MDOCUV2541D | CSL-MDOCUV312 | CSL-MDOCUV312/365 | CSL-MDOCUV312/3651D | CSL-MDOCUV3121D | CSL-MDOCUV365 | CSL-MDOCUV3651D | CSL-MICRODOC | CSL-MICRODOC1D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Unit Dimensions (cm) | 29 x 22 x 32 | 29 x 22 x 32 | 29 x 22 x 32 | 29 x 22 x 32 | 29 x 22 x 32 | 29 x 22 x 32 | 29 x 22 x 32 | 29 x 22 x 32 | 29 x 22 x 32 | 29 x 22 x 32 | 29 x 22 x 32 | 29 x 22 x 32 | 29 x 22 x 32 | 29 x 22 x 32 |
| Weight (Kg) | 6.1 | 6.1 | 6.1 | 6.1 | 6.1 | 6.1 | 6.1 | 6.1 | 6.1 | 6.1 | 6.1 | 6.1 | 6.1 | 6.1 |
| Analysis Software | None | None | Included | None | Included | Included | None | None | Included | Included | None | Included | None | Included |
| Transilluminator Wavelength | 254 | 254/312 | 254/312 | 254/365 | 254/365 | 254 | 312 | 312/365 | 312/365 | 312 | 365 | 365 | None | None |
| Camera Type | Digital DSLR | Digital DSLR | Digital DSLR | Digital DSLR | Digital DSLR | Digital DSLR | Digital DSLR | Digital DSLR | Digital DSLR | Digital DSLR | Digital DSLR | Digital DSLR | Digital DSLR | Digital DSLR |
| Epi White Light | 2x3W LED | 2x3W LED | 2x3W LED | 2x3W LED | 2x3W LED | 2x3W LED | 2x3W LED | 2x3W LED | 2x3W LED | 2x3W LED | 2x3W LED | 2x3W LED | 2x3W LED | 2x3W LED |
| Input Voltage | 110/220 | 110/220 | 110/220 | 110/220 | 110/220 | 110/220 | 110/220 | 110/220 | 110/220 | 110/220 | 110/220 | 110/220 | 110/220 | 110/220 |
| Safety Features | Safety door switch | Safety door switch | Safety door switch | Safety door switch | Safety door switch | Safety door switch | Safety door switch | Safety door switch | Safety door switch | Safety door switch | Safety door switch | Safety door switch | Safety door switch | Safety door switch |
CAMERA:
(All models include the same camera specifications)
| TYPE | CMOS SENSOR WITH DIGIC 4+ PROCESSOR |
| LENS TYPE | CANON EF/EF-S 18-55MM |
| EFFECTIVE PIXELS | 24.1 MEGAPIXELS |
| MAX. APERTURE | F/2.8 (W) - F/5.6 (H) |
| SHUTTER SPEED | 30 - 1/4000S. (TOTAL RANGE) |
| CAMERA FILTER | +3 CLOSE UP |
| STORAGE TYPE | SD; SDHC, SDXC (UHS SPEED CLASS 1 COMPATIBLE) |
