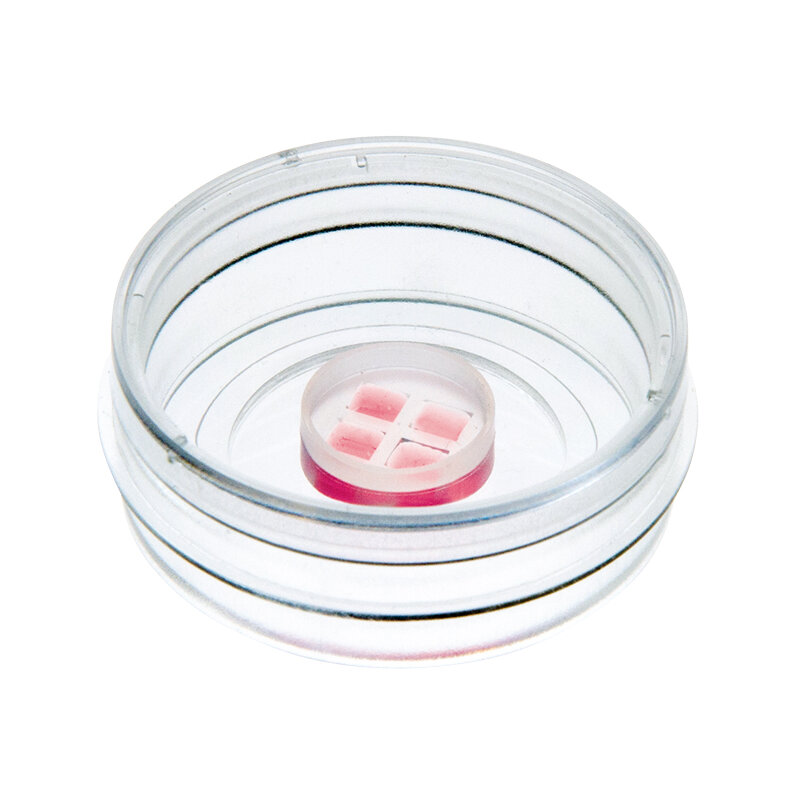

micro-Insert 4 Well in µ-Dish 35 mm, high
A 4-well silicone insert for live cell imaging of both adherent and suspension cells
- Allows long-term microscopy assays of single cells
- Cultivation of small numbers of cells without evaporation risks
- Conical wells for superb optical quality
- Individual inserts for single experiments
- Ideal cell growth on ibiTreat surface
Applications
- Live cell imaging of adherent and suspension cells
- Immunofluorescence assays
- Immobilization of cells in small wells, e.g., for 3D assays
- Performing long-term microscopy assays lasting up to several weeks
- Co-cultivation of cells
- Cell tracking of very small cell numbers over time
- Cell differentiation, e.g., single stem cells
Technical Features
- Four small 2.0 mm x 1.5 mm microscopy wells with a 4:3 digital format
- Suspension cells cannot escape the observation field
- Adhesive underside
- Transferable to any flat clean surface
- No material is left behind upon the insert’s removal
- Includes a rim for easy handling of the insert with tweezers
| Number of wells | 4 |
| Dimensions of wells (w x l) in mm | 2.0 x 1.5 (digital format 4:3) |
| Diameter of the complete insert | 12 mm |
| Height of the complete insert | 4.2 mm |
| Volume per well | 10 µl |
| Growth area per well | 0.03 cm2 |
| Coating area per well | 0.23 cm2 |
| Material | Biocompatible silicone |
| Bottom | No bottom – sticky underside |
Variant
Pack/Size
Price
Qty
micro-Insert 4 Well in µ-Dish 35 mm, high ibiTreat, Bulk Box 200: ready-to-use, tissue culture-treated, sterilized, individually packed
200 / Pack
£2,578.30 ex. VAT
micro-Insert 4 Well in µ-Dish 35 mm, high ibiTreat: ready-to-use, tissue culture-treated, sterilized, individually packed
30 / Pack
£455.04 ex. VAT
