Magnetic Induction Stirrer
UK Support
- Durable ABS housing is corrosion resistant and easy to clean
- Wear-free magnetic coils offer consistent and noiseless operation
- An easy to read digital display precisely controls time and speed enabling reproducible conditions
- Unit is programmable with 50% duty up to 99 cycles
- Time and speed can be conveniently adjusted while the unit is running
- Reverse rotation option for better mixing results
- Speed remains constant, even when load changes
- Rapid acceleration and braking (less than 10 seconds) to quickly meet stirring speed requirements
- Silicone rubber mat on lid prevents slipping of vessels and improves safety
- Included stir bars have PTFE coating for chemical resistance
SKU:
ISTIR2

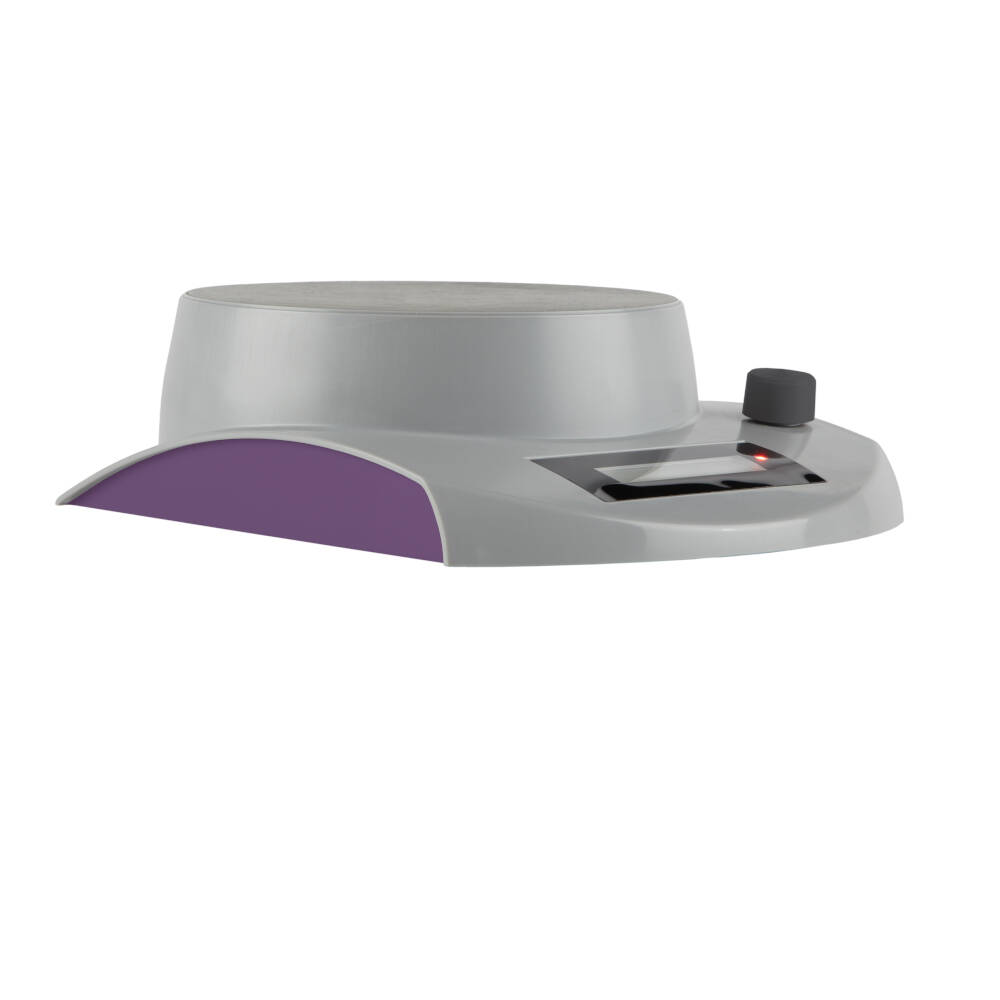

The Magnetic Induction Stirrer uses modern magnetic coil technology that has no moving parts resulting in a motor-less wear-free drive and maintenance free unit. High-quality rare-earth magnets are used in the stirrer design to ensure a strong magnetic coupling with consistent accurate alignment which significantly reduces the chance of spin-outs.
Package Includes: Magnetic Induction Stirrer, 2 Stir bars 35L mm x 12DIA. mm Cylindrical Shape, 1 low voltage, double insulated power adapter with 4 interchangeable plugs
- Durable ABS housing is corrosion resistant and easy to clean
- Wear-free magnetic coils offer consistent and noiseless operation
- An easy to read digital display precisely controls time and speed enabling reproducible conditions
- Unit is programmable with 50% duty up to 99 cycles
- Time and speed can be conveniently adjusted while the unit is running
- Reverse rotation option for better mixing results
- Speed remains constant, even when load changes
- Rapid acceleration and braking (less than 10 seconds) to quickly meet stirring speed requirements
- Silicone rubber mat on lid prevents slipping of vessels and improves safety
- Included stir bars have PTFE coating for chemical resistance
Package Includes: Magnetic Induction Stirrer, 2 Stir bars 35L mm x 12DIA. mm Cylindrical Shape, 1 low voltage, double insulated power adapter with 4 interchangeable plugs
Speed Range: 10 to 2,000rpm, 1 rpm increments
Run Time Ranges:
Stirrer Mode: 0’30” to 60’0” or continuous
Oscillating Mode: 0’30” to 60’0” and 1–99 cycles
Oscillating Period: 50% duty cycle
Capacity: 3 Liters PlU.S.
Mixing Surface: Approx. 160 mm in diameter
Weight: 1.13 kg (2.50 lb.)
Electrical:
Power Adapter Rating:
Input: 100-240 VAC 50/60 Hz 1.0A
Output: 12 VDC 2.2A
Stirrer Rating:
Input: 12 VDC
Current (under load): Approx. 1.5 A
Power: Approx. 18W
Dimensions: 24.5 x 19.5 x 7.5 cm
