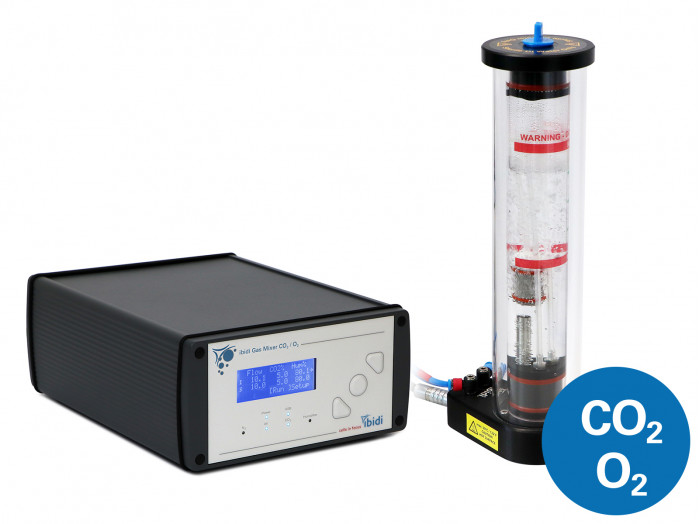

ibidi Gas Incubation System, CO2/O2 – Silver Line
SKU:
IB-11923
A gas mixer for long-term live cell imaging applications with precise, active humidity control and CO2/O2 regulation
Applications
The ibidi Gas Incubation System is ideal for live cell imaging experiments that require physiologic conditions on the microscope.
Combined with the ibidi Heating System, it serves as a complete Stage Top Incubator, precisely controlling essential parameters such as temperature, humidity, and CO2/O2 levels on the microscope to get reproducible results of, for example:
- Chemotaxis assays
- Angiogenesis assays
- Cell migration assays
- Wound healing assays
- Proliferation assays
- Cell culture under flow assays
- Hypoxia and oxygen depletion experiments
Technical Features
- Precise and reliable gas incubation for CO2 and O2
- Prevents evaporation inside the Incubation Chamber by active, feedback-controlled humidity regulation (ibidi's patented Humidity Control)
- Uses pressurized air to create the gas flow (no vibrations)
- Optional Air Pressure Generator available (for when pressurized air is not obtainable)
- Can be combined with the ibidi Heating System to create a complete Stage Top Incubator for long-term physiologic conditions on the microscope with controlled temperature, humidity, CO2, and O2
- Also available: ibidi Gas Incubation System CO2 – Silver Line without O2 regulation
- Humidity measurement close to the sample
- Including IncuControl software for remote control and data recording

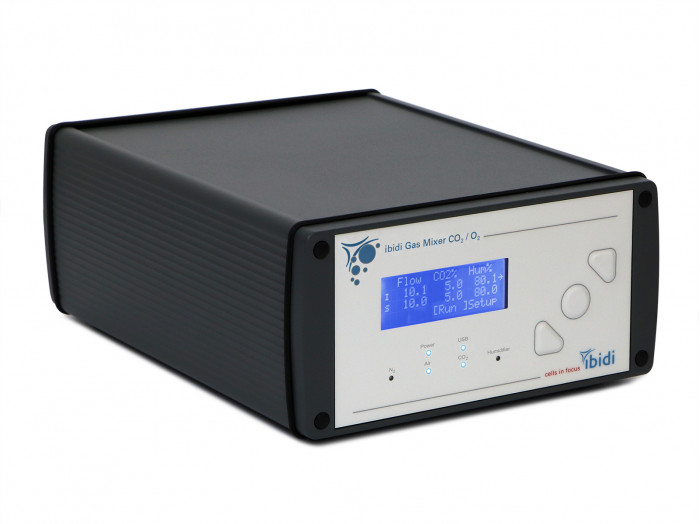

| ibidi Gas Mixer – Silver Line | |
| Operating humidity | Max. 80% relative humidity |
| Operating temperature | 18–30°C/64–86°F |
| Dimensions | 90 x 170 x 230 mm³ |
| Weight | 2230 g / 4.9 lbs |
| External power supply | AC 100–240 V, 50/60 Hz, 1.4 A |

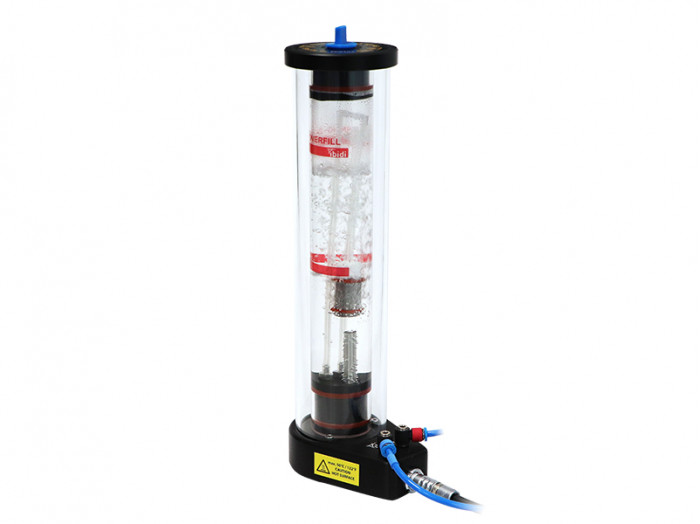

| Humidifying Column | |
| Operating humidity | Max. 80% relative humidity |
| Dimensions | 70 x 110 x 300 mm³ |
| CO2 Control | |
| Control range | 0–15% |
| Resolution | 0.1% |
| O2 Control | |
| Control range | 1–21% (settings below 1% are less accurate, a typical minimum value in an ibidi Incubation Chamber is 0.5% O2) |
| Resolution | 0.1% |
| Flow Control Mixed Gas | |
| Control range | 0–20 l/h |
| Humidity Control | |
| Control range | 20–99% relative humidity (lower limit is dependent on environment and gas supply, minimum set humidity is 0%) |
| Resolution | 0.1% |
| Gas Supply (Input) | |
| Pressurized air | 1 bar / 14.5 psi optimum (0.8–1.2 bar / 11.6–17.4 psi) |
| CO2 | 1 bar / 14.5 psi optimum (0.8–1.2 bar / 11.6–17.4 psi) |
| N2 | 1 bar / 14.5 psi optimum (0.8–1.2 bar / 11.6–17.4 psi) |
| Tubing for all gases (supplied with the system) | PUR/PUN tubing 4 mm inner diameter 6 mm outer diameter 1 mm wall thickness |
