GelLITE-X2 System with UVT,230V/50Hz,Europe (2 Boxes)
- Engineered and manufactured in the UK
- Motorized lens through a user-friendly interface optimized for smooth, efficient workflows.
- Designed for fluorescence and gel documentation.
- 5 million pixel resolution camera.
- UVfilter – pre attached to camera (no need for drawer).
- Includes user-friendly image capture software developed in-house.
- Analyse data efficiently with GeneTools software, which comes with unlimited licenses.

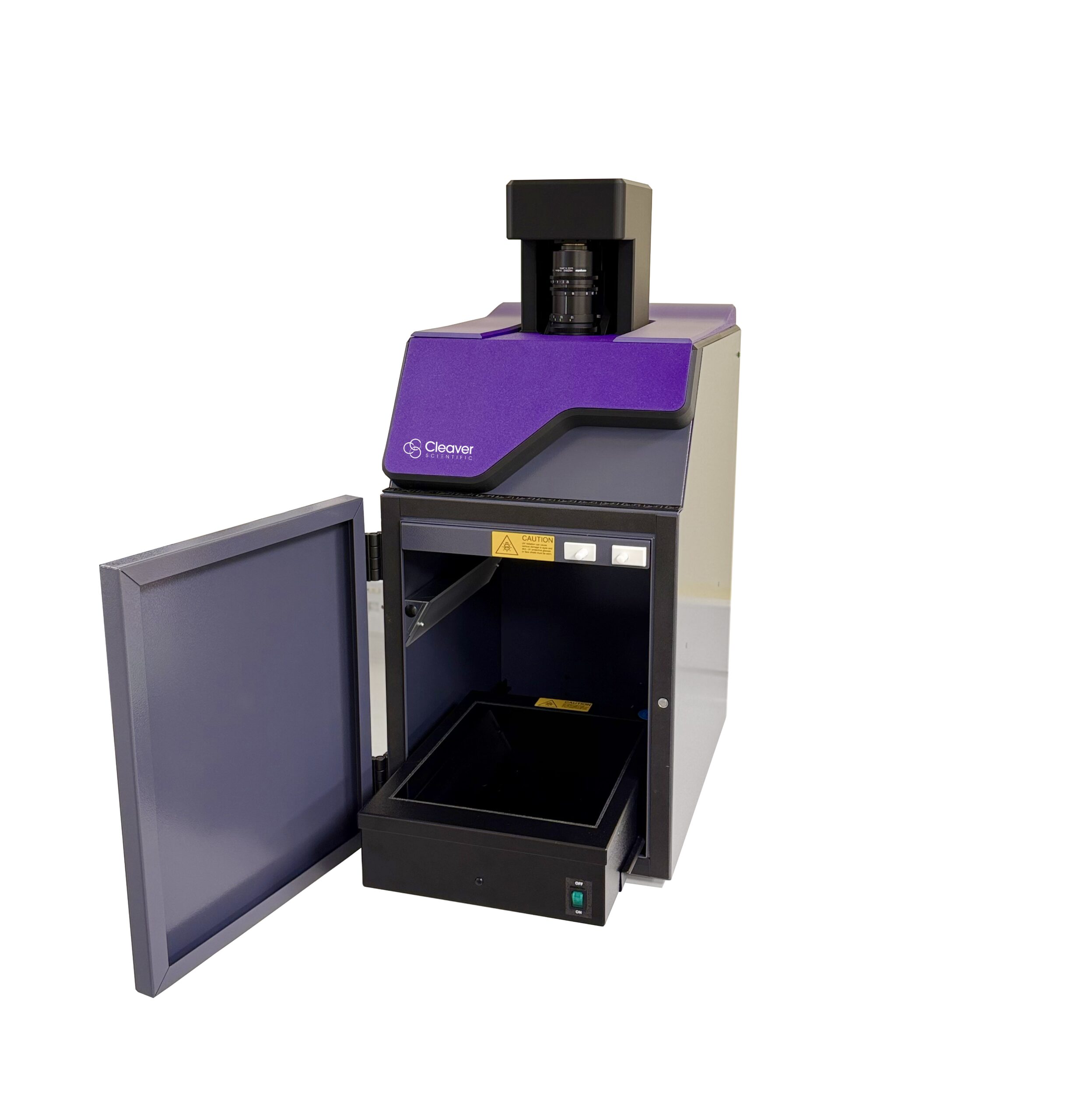

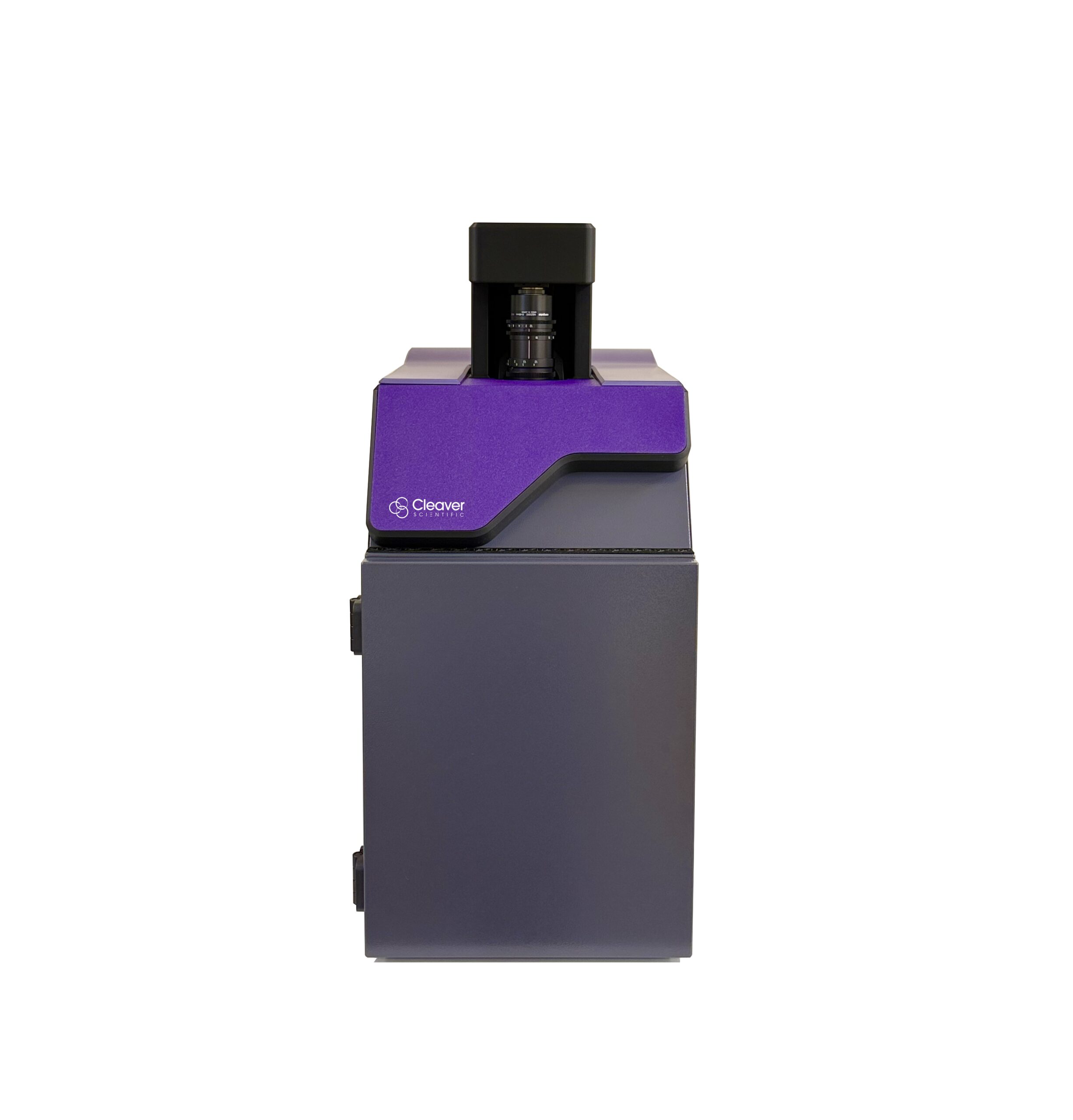

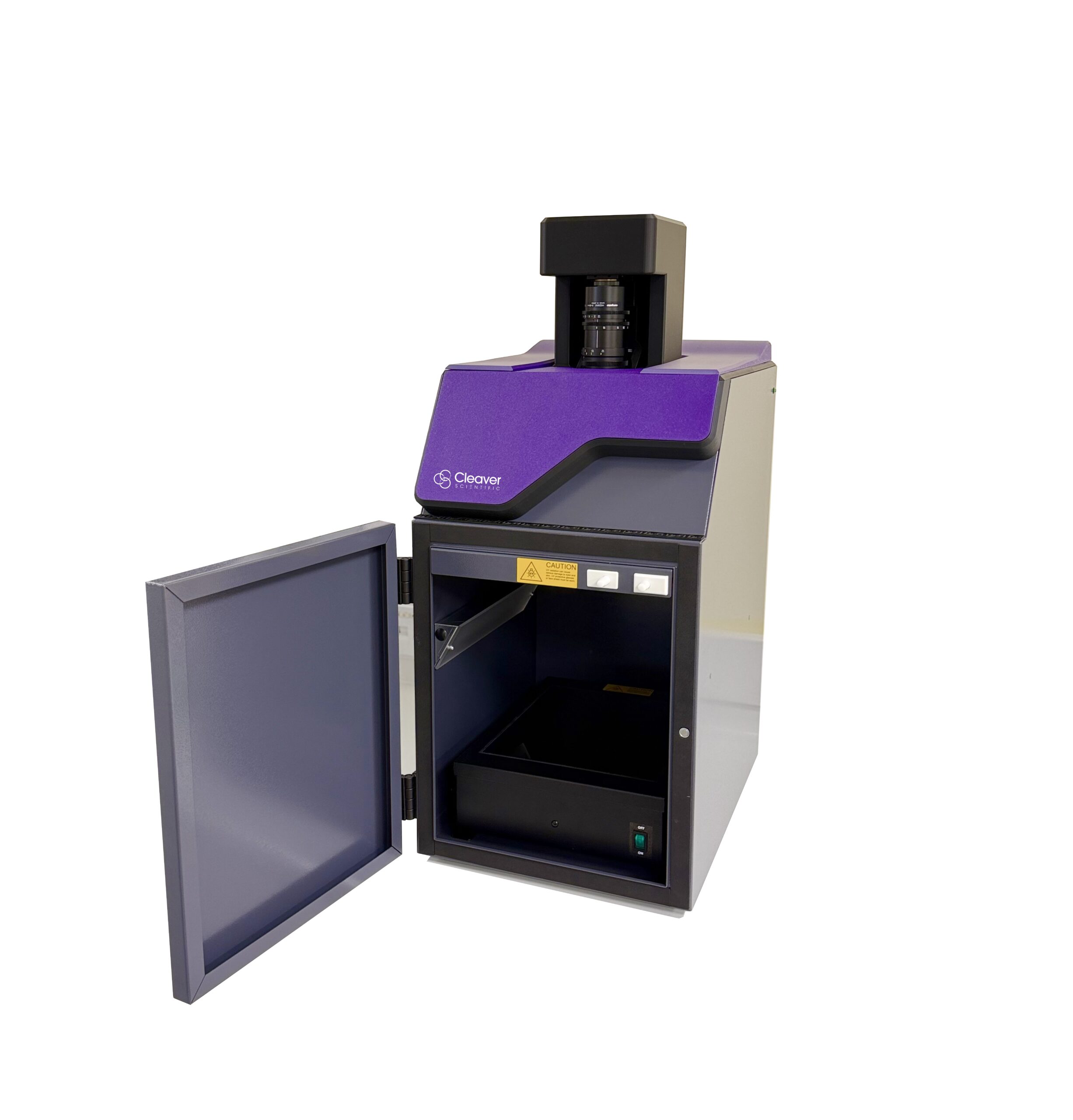

The GELLITE-X2 is an economical yet high-performance imaging system designed for fluorescence and gel documentation. Compact and efficient, it features a built-in darkroom and internal LED white light, providing consistent, high-quality imaging with a sensitive 5MP camera offering 12- and 16-bit image output, the GELLITE-X2 delivers clear, reproducible results for a range of applications.
Resolution
Capture precise, high-quality images using advanced camera technology and controlled illumination. The 5MP camera provides exceptional resolution, ideal for accurate documentation and analysis.
Control
Operate with confidence using intuitive image capture and manipulation software. Easily adjust lighting, select filters, and control the motorised lens through a user-friendly interface designed for efficient workflows.
Value
Offering exceptional performance in a compact format, the GELLITE-X2 combines robust functionality with economical design—making it a dependable choice for everyday imaging in busy research labs.
APPLICATIONS
Captures images of DNA gels stained with Ethidium Bromide using the UV transilluminator.
Ideal for high resolution imaging of Autorads, with superb detail and band separation.
Perfect for viewing gels stained with Coomassie Blue or silver stain, as well as tissues, slides and films.
Use the blue light conversion screen for safe dye applications, including GFP, SYBR® Green, SYBR® Blue, SYBR®Safe, SYPRO Ruby, Safe View and Flamingo.
Automatically capture images of stain free gels, eliminating time-consuming staining steps
| SKU | GELLITE-X2 |
|---|---|
| Unit Dimensions (cm) | 75x31x45cm |
| Construction | Powder Coated Steel |
| Resolution | 5 Megapixel |
| Analysis Software | Included |
| Transilluminator Wavelength | 302nm |
| Epi White Light | Included |
| Max sample size | 20 x 24 cm |
| Lens | 6.5-39 F/1.4 |
| Sensor Bit-Depth | 12/16 bit |
| Weight (kg) | 20 |
| Emission Filters | Quick change filter tray |
| Image Storage | SGD, BMP, TIFF and JPEG |
| Sensor | 1/2.5 inch |
| power input (v) | 100-240 |
| Advanced Analysis Features | Yes |
| Operating System Requirements | Windows |
| illumination | White epi |
