Fixed Angle Gamma Shields
UK Support

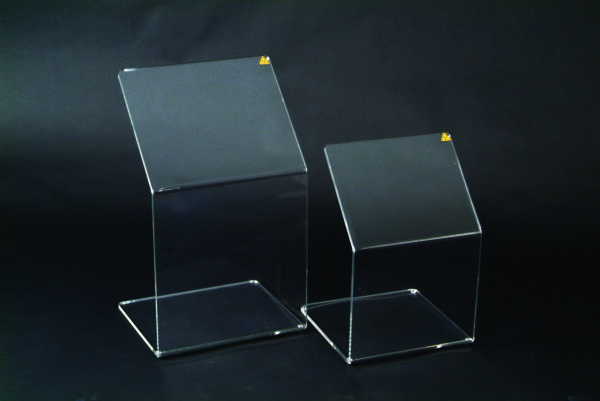

- 15° or 45 ° fixed angle Shield

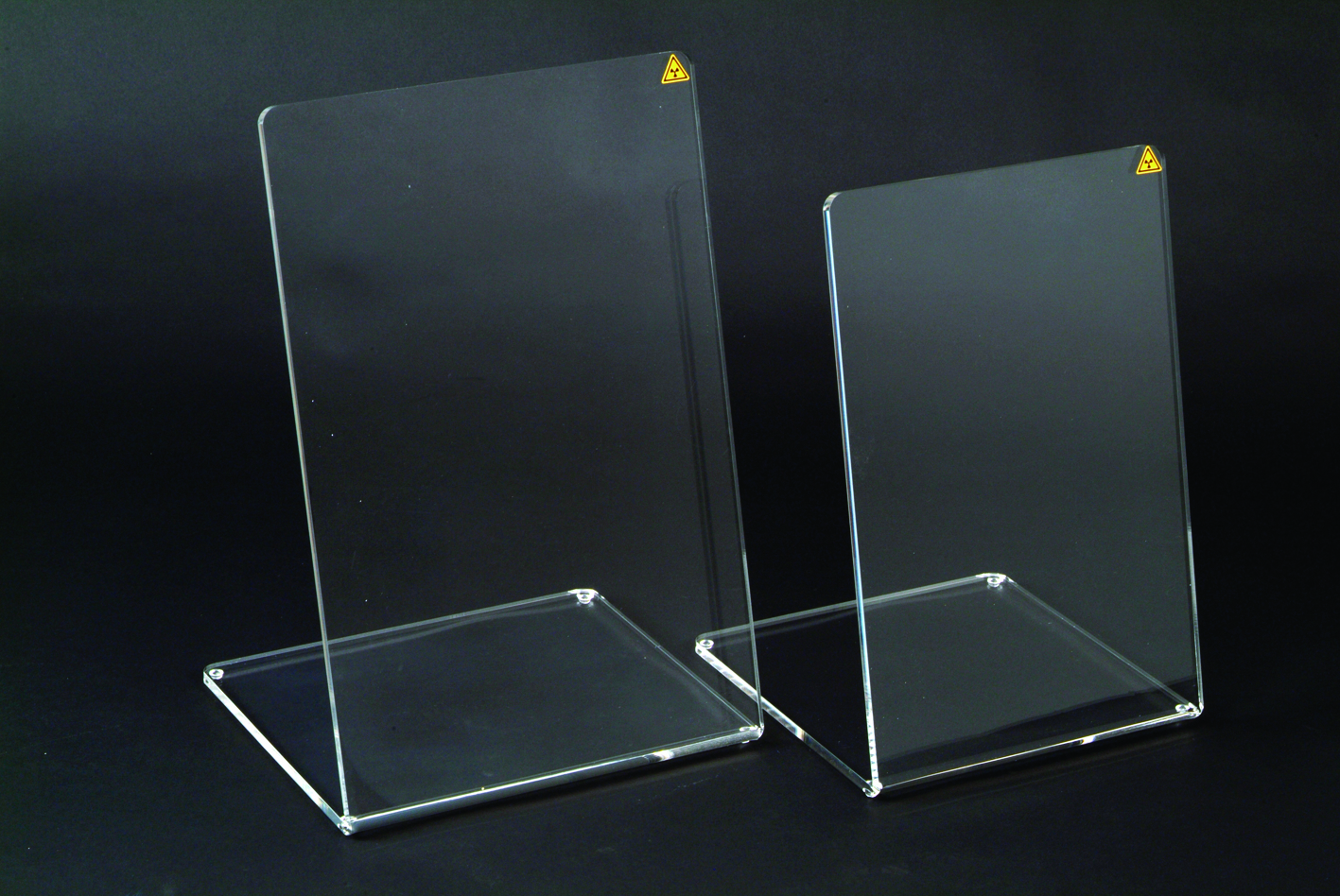

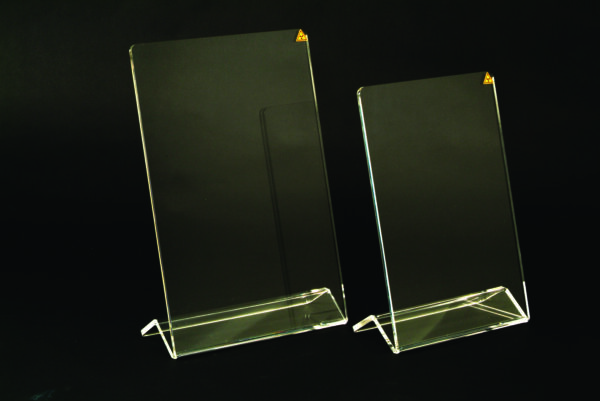

- Flat Base for direct use, or curved base for use with spill tray
- 12 mm Lead Infused Acrylic for Gamma Protection
- 0.5 mm Lead Equivalence
Supplied in small, medium and large sizes and with a 15cm-deep curved base for use with safety trays, or a 30x30cm flat base for under-the-bench protection. A range of angles offers increased manoeuvrability, while clear optical acrylic aids visualisation.
All radiation protection products should be tested by your safety officer before use and approved for the required application.
| SKU | CSR-S1G | CSR-S1OG | CSR-S1OTG | CSR-S1TG | CSR-S2G | CSR-S2OG | CSR-S2OTG | CSR-S2TG |
|---|---|---|---|---|---|---|---|---|
| Protection | Gamma | Gamma | Gamma | Gamma | Gamma | Gamma | Gamma | Gamma |
| Shield Type | Small Fixed Angle | Small Fixed Angle | Small Fixed Angle | Small Fixed Angle | Large Fixed Angle | Large Fixed Angle | Large Fixed Angle | Large Fixed Angle |
| Shield Angle | 15 | 45 | 45 | 15 | 15 | 45 | 45 | 15 |
| Base Style | Flat | Flat | Curved | Curved | Flat | Flat | Curved | Curved |
