ALLIANCE™ Q9 Manual™
- New Q-smart™ darkroom, Automatic "wave" door aperture
- Box™ concept, 7-position motorised filter wheel
- Q9 camera: 9.2 megapixels, -60°C regulated/3-stage, 4.8 OD
- Lens: manual, panoramic f/0.80 lens, 24x20cm FOV
- Software: license-free Nine-AllianceQ9™, analysis included

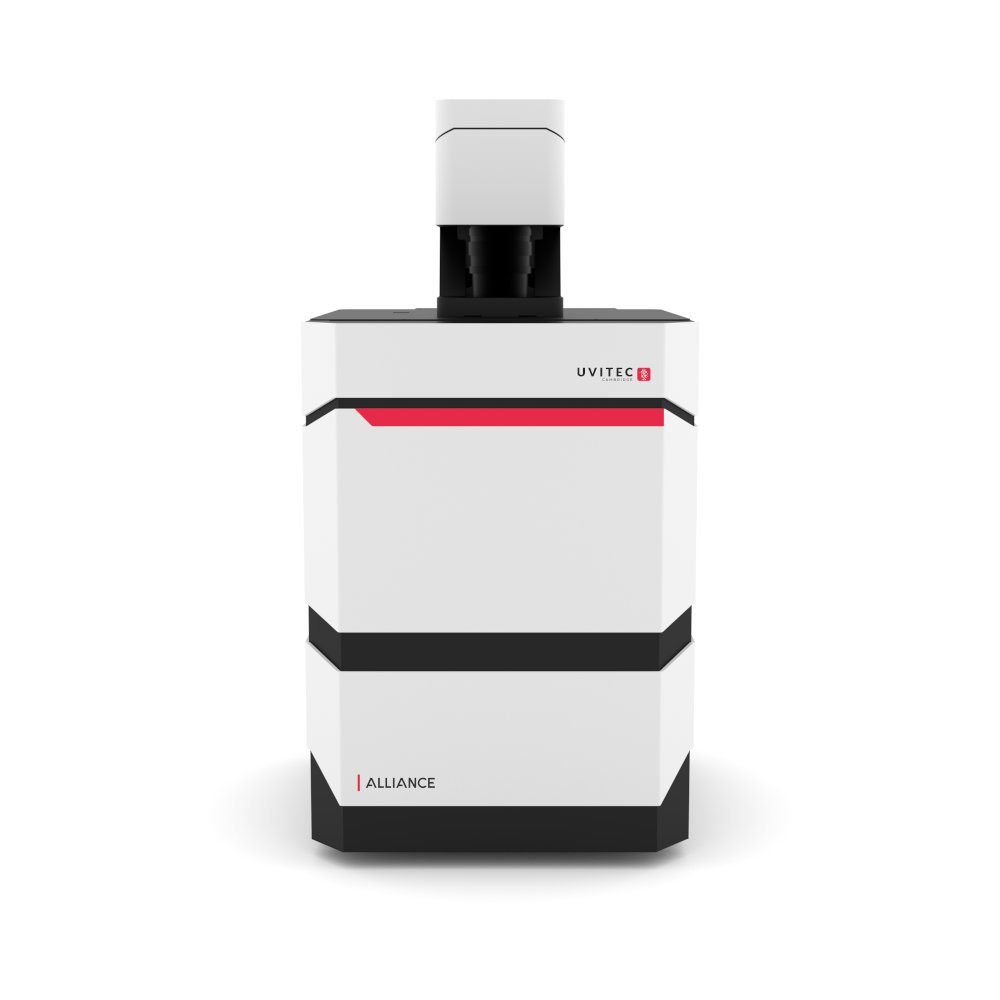

The Alliance Q9 is Uvitec’s top-end chemiluminescence and spectral fluorescence imaging system, proudly boasting the highest optics specifications and sensitivity on the market. The Q9 Manual is a cost-effective imager, fully expandable and tailored to your workflow, upgradeable through plug-n-play technology.
Practicality
Auto-exposure > ideal exposure, for every sample
Pre-calibrated optics > effortless setting, in no time
Fully slide-out tray > hassle-free sample positioning
Mobile sample tray > painless westerns imaging
All-in-one > acquisition – editing – analysis, straight away
Optics
9.2 megapixels > massive resolution, HD pictures
f/0.80 custom lens > unrivalled camera sensitivity
-60°C camera cooling > radical background suppression
OD 4.8 dynamic range > outstanding weak/strong detection ratio
65,535 gray levels > research-level protein quantification
Darkroom
Brand-new design > Q-Smart darkroom
Box© concept > interchangeable transilluminators
Plug-n-play > upgrade any module, at any time
7-position wheel > and up to 18 filters to choose from
Wave to open > auto door aperture
Applications
Femtogram-level > stunning detection of faintest signals
Uvipure© technology > enhanced UV for EtBr and all safe stains
New chromapure© modules > up to 6 simultaneous channels
Confocal discs > boosted fluorescence signals capture
Filters > up to 18 filters to choose from
