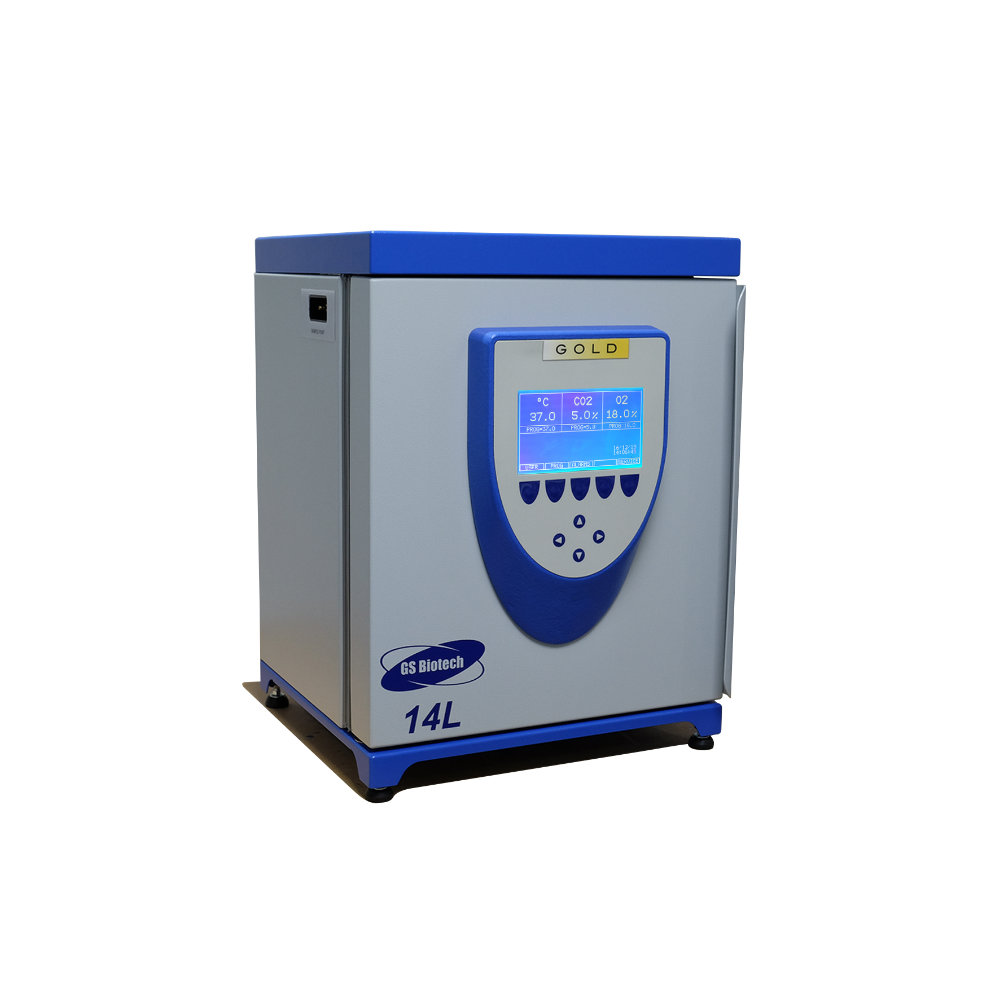

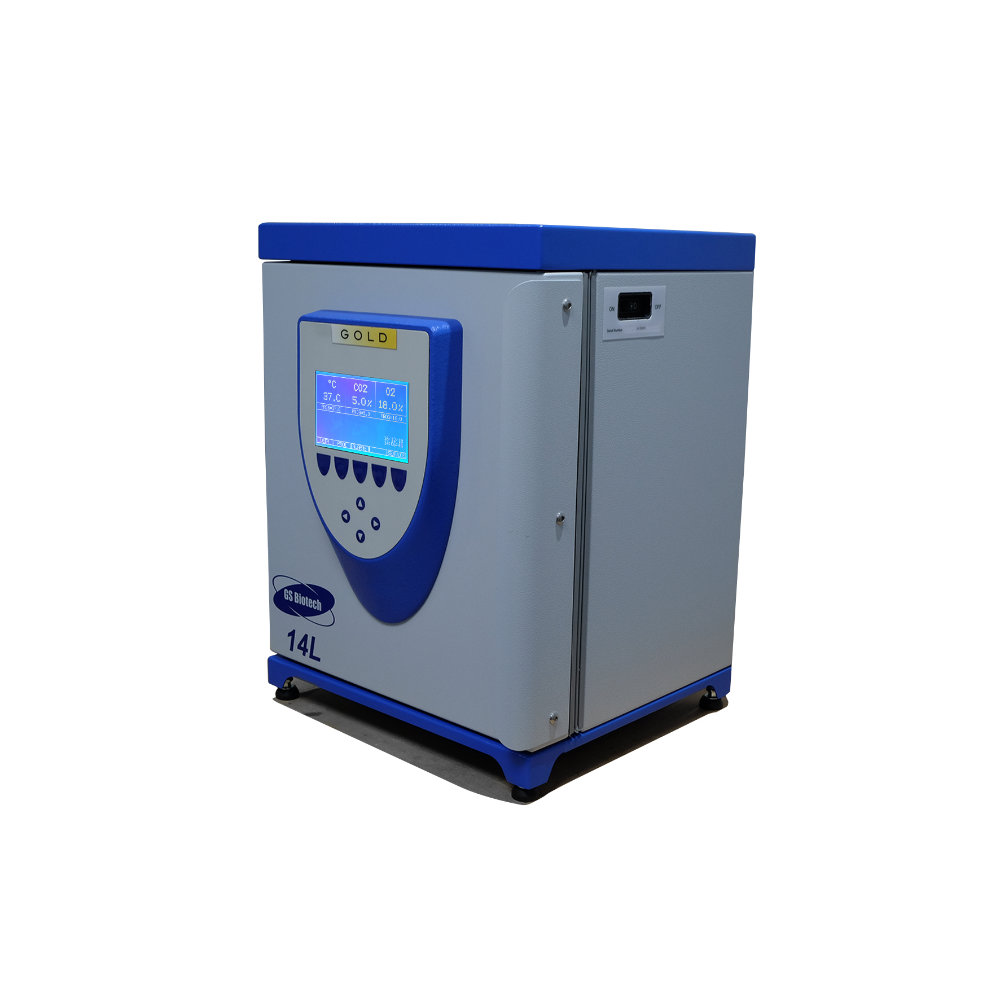

14L CO2 Incubator
UK Support
- Seamless chamber, with rounded interior corners makes cleaning easy.

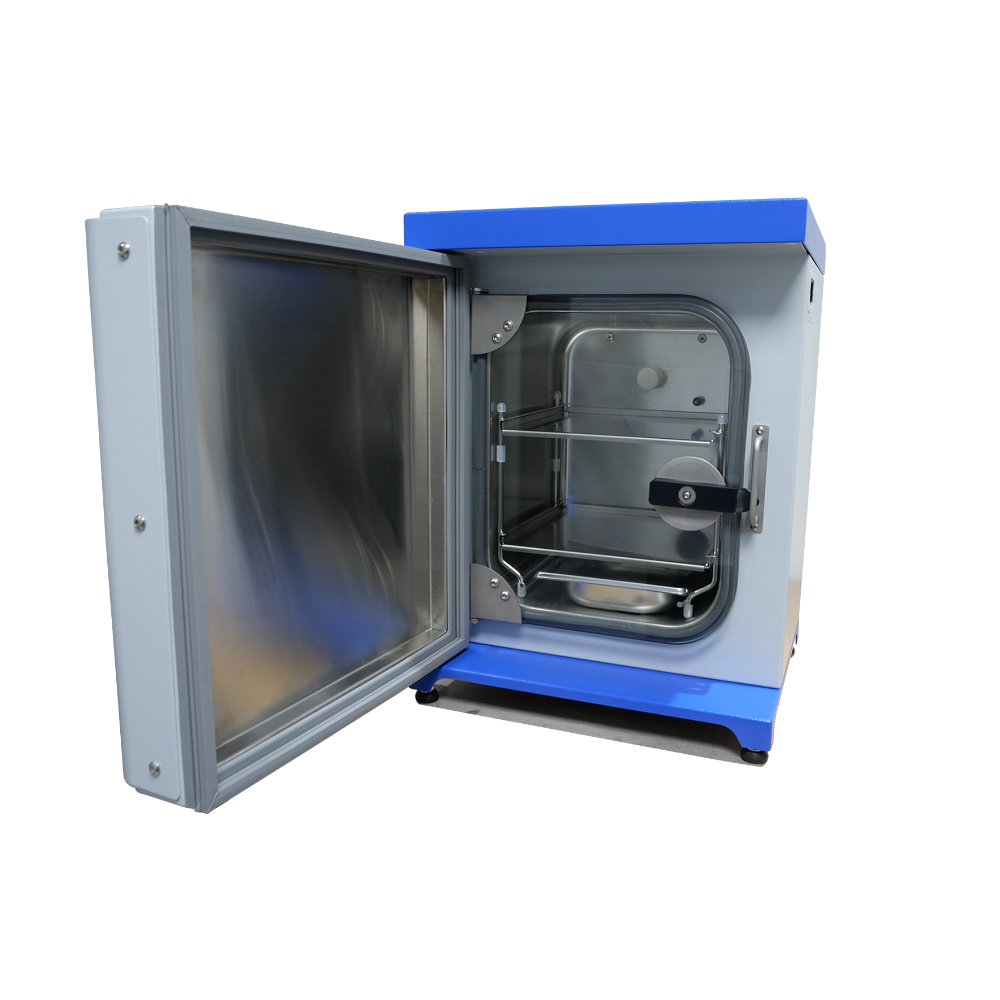

- Sealed inner glass door allows chamber viewing.
- CO2 range programmable from 0.2 to 20 %.
- Temperature range programmable from 4 °C above ambient to 50 °C.
- Large, easy to read LCD display with LED backlight.
- Removable, seamless, stainless steel humidity reservoir.
- 25mm access port for cable pass-through etc.
- HEPA filtration for all incoming gasses.
- Large range of options allows you to configure each incubator for each task.
- 3 Year Warranty (extendable).

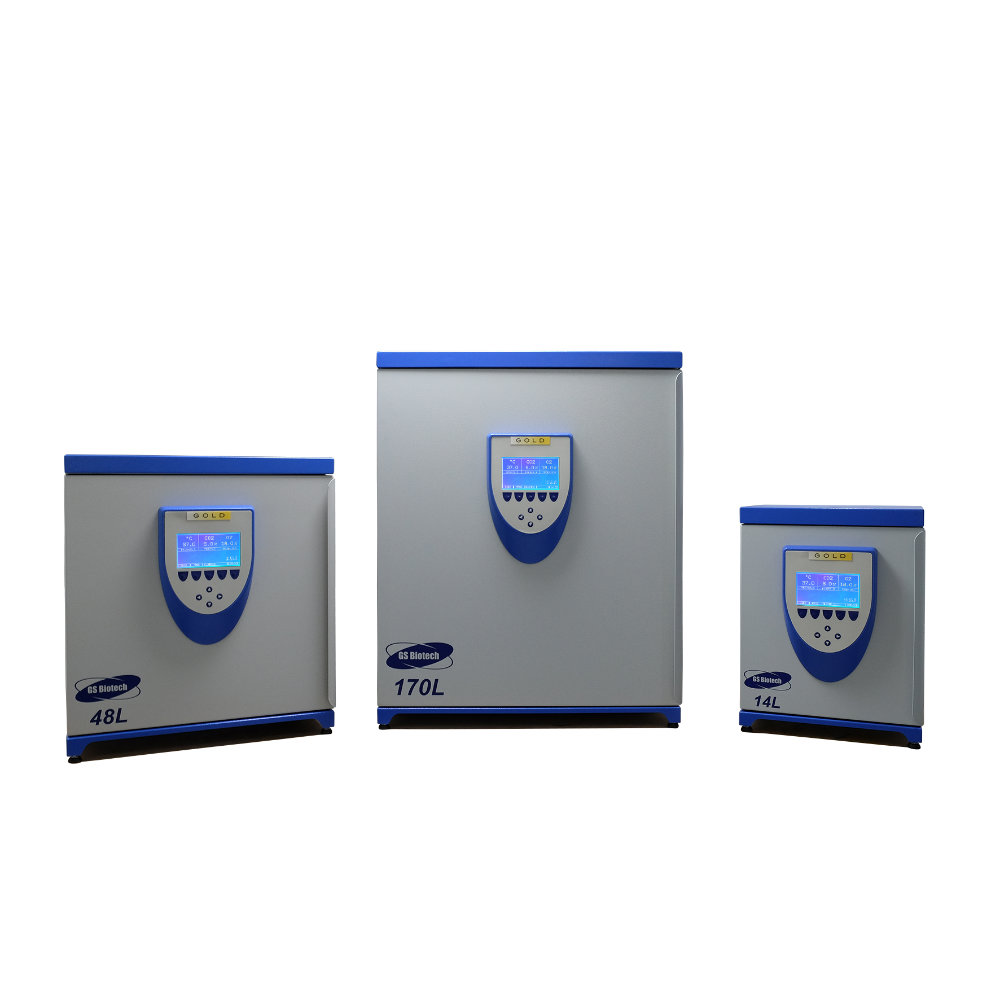

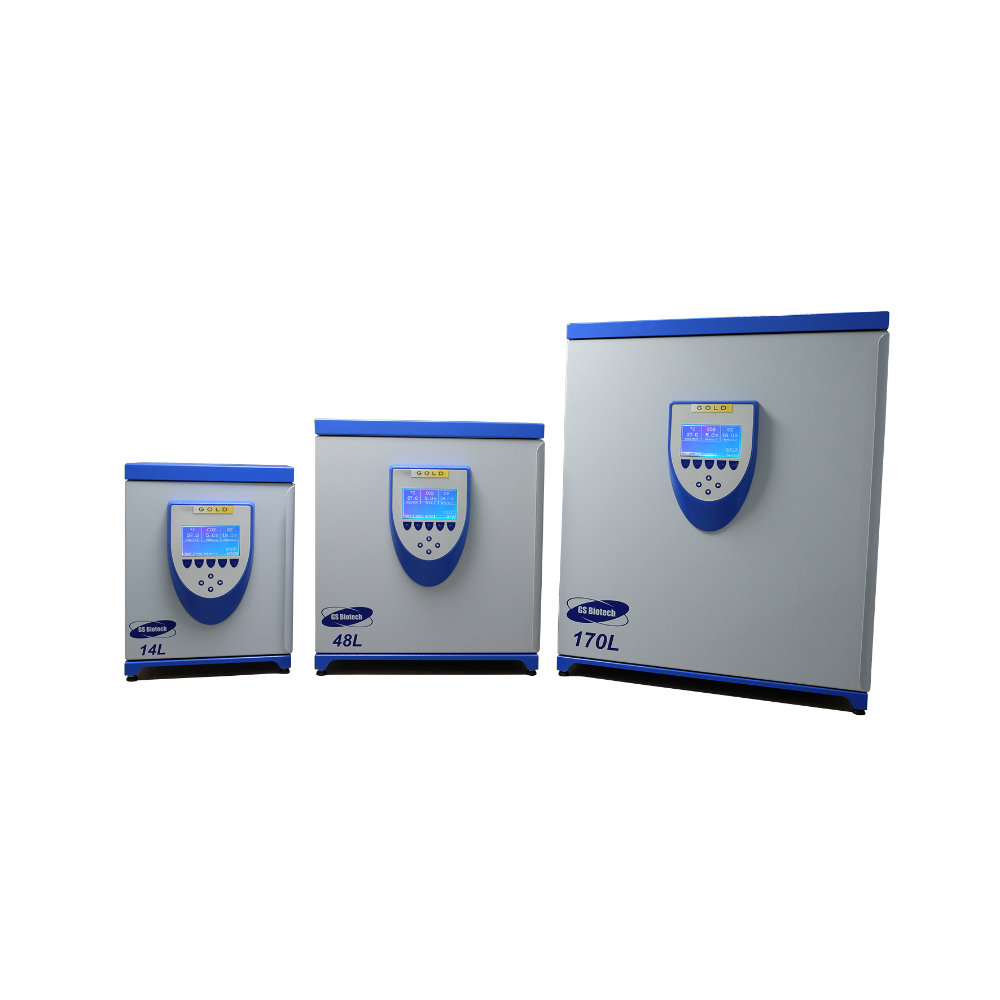

The range is designed around a scalable architecture and offers the following features as standard:
- Optimum chamber environment, profiled heating creates gentle circulation – no fan or HEPA filter.

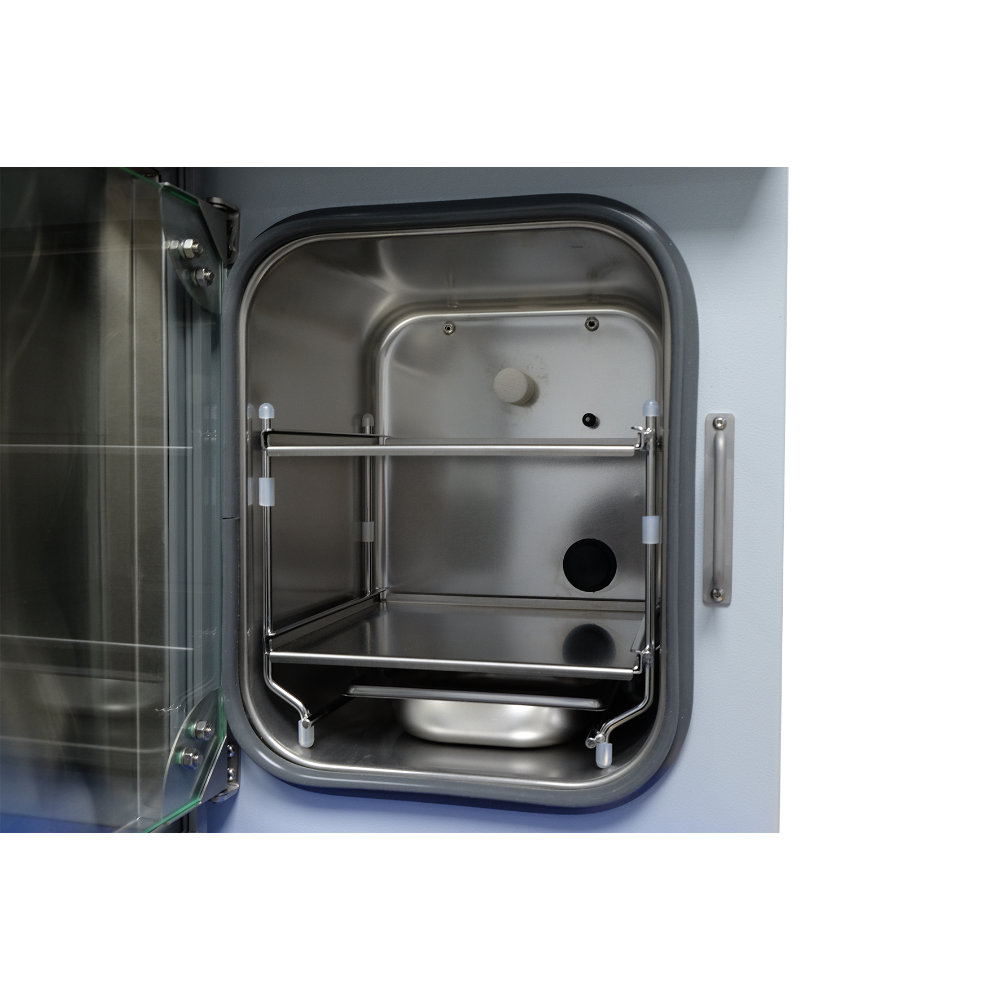

- Seamless chamber, with rounded interior corners makes cleaning easy.
- Removable shelves are non-tip.
- Sealed inner glass door allows chamber viewing.
- CO2 range programmable from 0.2 to 20 %.
- Temperature range programmable from 4°C above ambient to 50°C.
- Infrared CO2 Sensor, with auto self-referencing function.
- Large, easy to read LCD display with LED backlight.

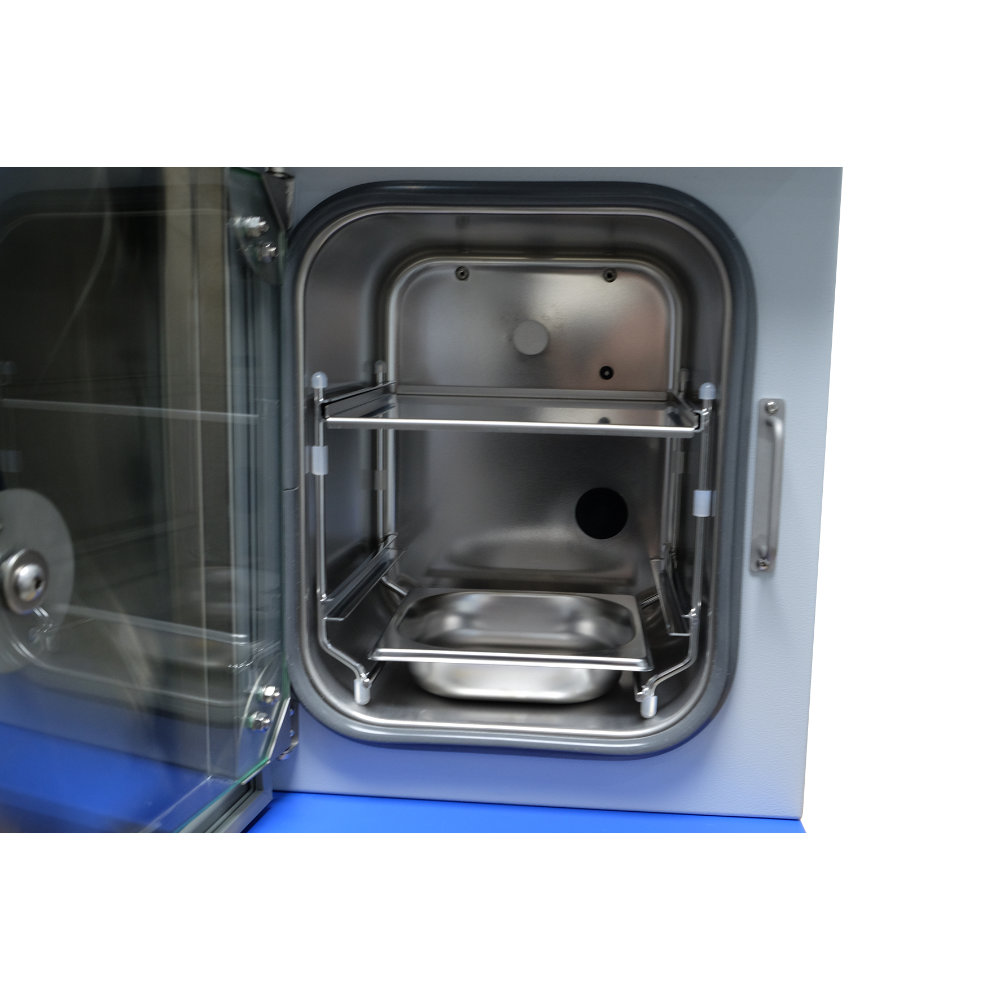

- Removable, seamless, stainless steel humidity reservoir.
- 25mm access port for cable pass-through etc.
- HEPA filtration for all incoming gasses.
- Large range of options allows you to configure each incubator for each task.
- Optional data capture and reporting for QA and verification purposes.
- 3 Year Warranty (extendable).
Control System Safety Features Include:
- Independent over temperature cut-out.
- Calibration and programmed data internally backed up to guard against loss.
Oxygen Control
An Oxygen control options are available: 1-19%
The control systems consist of nitrogen injection to accurately control the desired below ambient Oxygen level.
| Range | 4°C above ambient to 50°C | Humidity | Up to 95% @ 37°C |
| Control | ± 0.1°C | Solid Shelves | 2 Shelves |
| Stability | ± 0.1°C | Dimensions | 215(W) x 192(D)mm |
| Uniformity | ± 0.3°C | Chamber | 238(W) x 201(D) x 298(H)mm |
| Range | 0.2% - 20% | External | 336(W) x 322(D) x 481(H)mm |
| Control | ± 0.1°C | Crated | 461(W) x 497(D) x 716(H)mm |
| Stability | ± 0.1°C | Unit Weight | 22kg |
| Uniformity | ± 0.2°C | Crated Weight | 38kg |
| Recovery Rate | > 1.5% per minute | Voltage | 100/120V 50/60Hz |
| Connection | 6mm tubing | 220/240V 50/60Hz | |
| Gas Pressure | 0.35 BAR (5PSI) | Power | 700W |
| Tray Capacity | 0.3 Litres | Hold Energy | < 0.1kWh @ 37°C |
