µ-Slide VI 0.4
- All-in-one chamber that simplifies immunofluorescence protocols
- Homogeneous cell distribution over the channel surface, regardless of handling practices
- Cost-effective experiments with small numbers of cells and low volumes of reagents

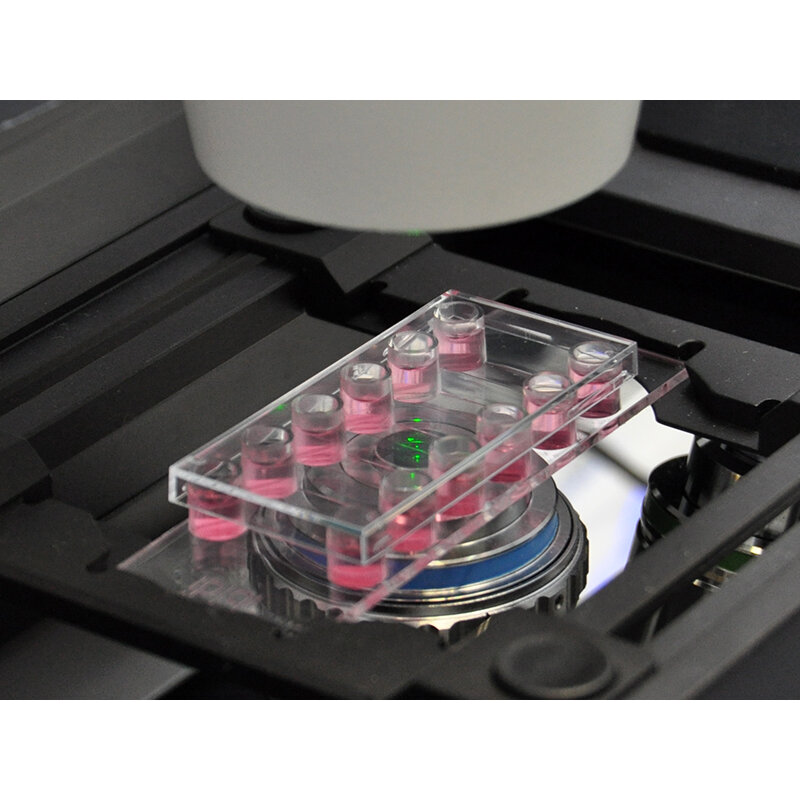

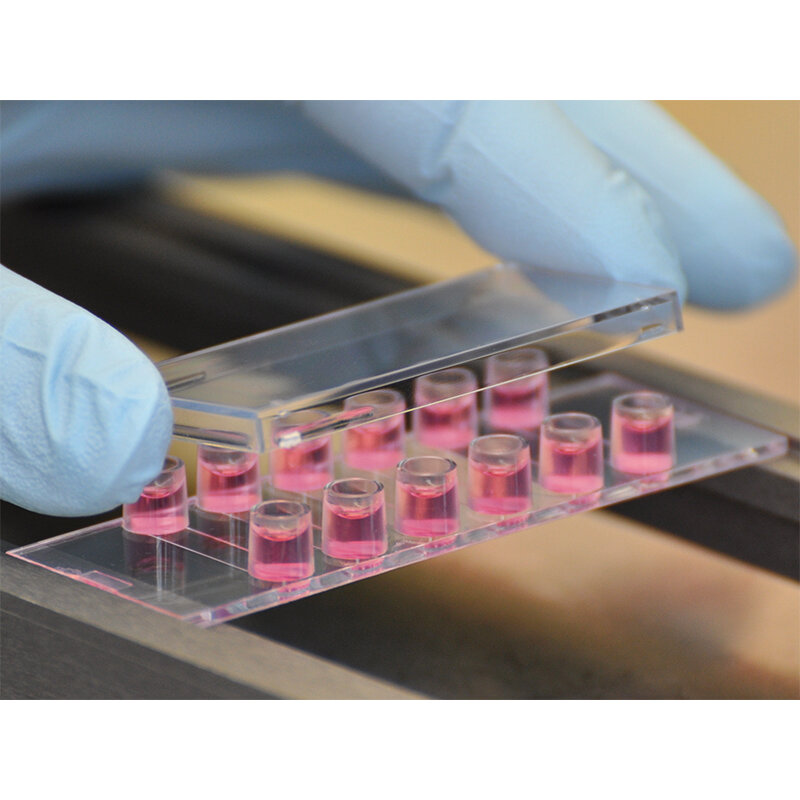

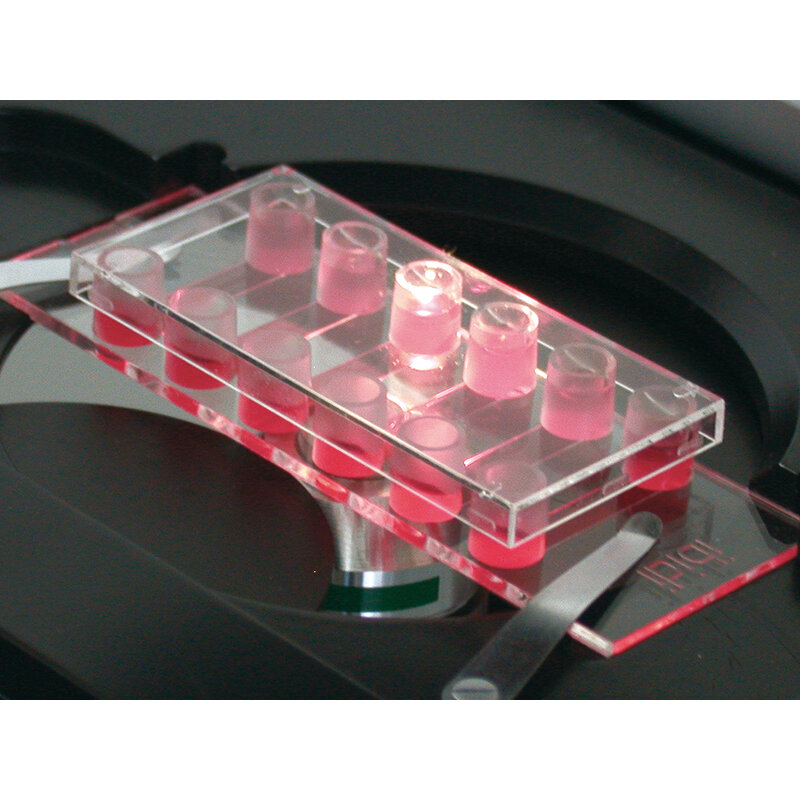

A 6 channel μ-Slide suitable for flow experiments and for immunofluorescence assays
- All-in-one chamber that simplifies immunofluorescence protocols
- Homogeneous cell distribution over the channel surface, regardless of handling practices
- Cost-effective experiments with small numbers of cells and low volumes of reagents
Applications
- Immunofluorescence assays and live cell imaging
- Real-time imaging under either static or flow conditions
- Parallel screenings using multichannel pipettes
Technical Features
- 30 µl channel volume, which saves on reagent consumption
- Easy connection to existing tubes and pumps via female Luer adapter
- Fully compatible with high resolution fluorescence microscopy
- Defined shear stress and shear rate level
| Outer dimensions (w x l) | 75.5 x 25.5 mm² |
| Adapters | Female Luer |
| Number of channels | 6 |
| Channel volume | 30 µl |
| Channel height | 0.4 mm |
| Channel length | 17 mm |
| Channel width | 3.8 mm |
| Volume per reservoir | 60 µl |
| Growth area | 0.6 cm² per channel |
| Coating area using 30 µl | 1.2 cm² per channel |
| Bottom: ibidi Polymer Coverslip | |
Variant
Pack/Size
Price
Qty
µ-Slide VI 0.4 Collagen I, Bulk Box 120: #1.5 polymer coverslip, sterilized, 8 per tray, 15 trays
120 / Pack
£3,910.74 ex. VAT
µ-Slide VI 0.4 Collagen I, Bulk Box 90: #1.5 polymer coverslip, sterilized, individually packed
90 / Pack
£3,116.37 ex. VAT
µ-Slide VI 0.4 Poly-L-Lysine, Bulk Box 120: #1.5 polymer coverslip, sterilized, 8 per tray, 15 trays
120 / Pack
£3,910.74 ex. VAT
µ-Slide VI 0.4 Poly-L-Lysine, Bulk Box 90: #1.5 polymer coverslip, sterilized, individually packed
90 / Pack
£3,116.37 ex. VAT
µ-Slide VI 0.4 Collagen IV, Bulk Box 120: #1.5 polymer coverslip, sterilized, 8 per tray, 15 trays
120 / Pack
£3,910.74 ex. VAT
µ-Slide VI 0.4 Collagen IV, Bulk Box 90: #1.5 polymer coverslip, sterilized, individually packed
90 / Pack
£3,116.37 ex. VAT
µ-Slide VI 0.4 Untreated, Bulk Box 120: #1.5 polymer coverslip, hydrophobic, sterilized, 8 per tray, 15 trays
120 / Pack
£2,100.98 ex. VAT
µ-Slide VI 0.4 Untreated, Bulk Box 90: #1.5 polymer coverslip, hydrophobic, sterilized, individually packed
90 / Pack
£1,674.22 ex. VAT
µ-Slide VI 0.4 ibiTreat, Bulk Box 90: #1.5 polymer coverslip, tissue culture-treated, sterilized, individually packed
90 / Pack
£1,674.22 ex. VAT
µ-Slide VI 0.4 ibiTreat: #1.5 polymer coverslip, tissue culture-treated, sterilized, individually packed
15 / Pack
£328.28 ex. VAT
µ-Slide VI 0.4 Poly-L-Lysine: #1.5 polymer coverslip, sterilized, individually packed
15 / Pack
POA
µ-Slide VI 0.4 Collagen IV: #1.5 polymer coverslip, sterilized, individually packed
15 / Pack
£611.05 ex. VAT
µ-Slide VI 0.4 Untreated: #1.5 polymer coverslip, hydrophobic, sterilized, individually packed
15 / Pack
£328.28 ex. VAT
µ-Slide VI 0.4 ibiTreat, Bulk Box 120: #1.5 polymer coverslip, tissue culture-treated, sterilized, 8 per tray, 15 trays
120 / Pack
£2,100.98 ex. VAT
µ-Slide VI 0.4 Collagen I: #1.5 polymer coverslip, sterilized, individually packed
15 / Pack
£611.05 ex. VAT
