µ-Slide 4 Well
- All-in-one chamber slide used for cell culture and microscopy
- Observation of the sample through the coverslip-like bottom using high resolution microscopy
- Fast and easy immunofluorescence, with no coverslips and no leakage
- Cost-effective experiments using small numbers of cells and low volumes of reagents

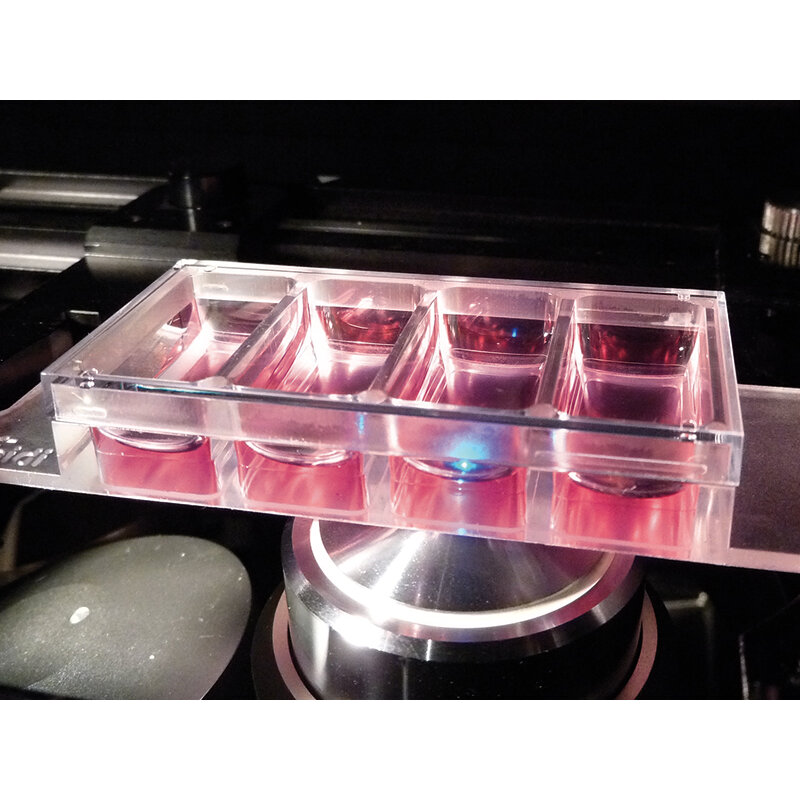

An open µ-Slide (chambered coverslip) with 4 wells for use in immunofluorescence and high-end microscopy
- All-in-one chamber slide used for cell culture and microscopy
- Observation of the sample through the coverslip-like bottom using high resolution microscopy
- Fast and easy immunofluorescence, with no coverslips and no leakage
- Cost-effective experiments using small numbers of cells and low volumes of reagents
Applications
- Cultivation and microscopy of cell cultures
- Transfection assays
- Fluorescence microscopy of both living and fixed cells
- Live cell imaging over extended time periods
- Suitable for DIC, when used with a DIC lid
Technical Features
- Open µ-Slide (chambered coverslip) with 4 independent wells
- Excellent optical quality imaging chamber for high-end microscopy
- Compatible with staining and fixation
- ibiTreat surface for optimal cell adhesion
- Made of biocompatible plastic material – no glue and no leaking
- Also available with a glass bottom
| Outer dimensions (w x l) | 25.5 x 75.5 mm² |
| Number of wells | 4 |
| Dimensions of wells (w x l x h) | 21.6 x 11.4 x 9.3 mm³ |
| Volume per well | 700 µl |
| Total height with lid | 10.8 mm |
| Growth area per well | 2.5 cm² |
| Coating area per well | 4.1 cm² |
| Bottom: ibidi Polymer Coverslip | |
Variant
Pack/Size
Price
Qty
µ-Slide 4 Well Poly-L-Lysine, Bulk Box 120: #1.5 polymer coverslip, sterilized, 8 per tray, 15 trays
120 / Pack
£3,910.74 ex. VAT
µ-Slide 4 Well Poly-L-Lysine, Bulk Box 90: #1.5 polymer coverslip, sterilized, individually packed
90 / Pack
£3,116.37 ex. VAT
µ-Slide 4 Well Untreated, Bulk Box 120: #1.5 polymer coverslip, hydrophobic, sterilized, 8 per tray, 15 trays
120 / Pack
£1,459.82 ex. VAT
µ-Slide 4 Well Untreated, Bulk Box 90: #1.5 polymer coverslip, hydrophobic, sterilized, individually packed
90 / Pack
£1,163.30 ex. VAT
µ-Slide 4 Well ibiTreat: #1.5 polymer coverslip, tissue culture-treated, sterilized, individually packed
15 / Pack
£228.10 ex. VAT
µ-Slide 4 Well Poly-L-Lysine: #1.5 polymer coverslip, sterilized, individually packed
15 / Pack
POA
µ-Slide 4 Well Untreated: #1.5 polymer coverslip, hydrophobic, sterilized, individually packed
15 / Pack
£228.10 ex. VAT
µ-Slide 4 Well ibiTreat, Bulk Box 120: #1.5 polymer coverslip, tissue culture-treated, sterilized, 8 per tray, 15 trays
120 / Pack
£1,459.82 ex. VAT
µ-Slide 4 Well ibiTreat, Bulk Box 90: #1.5 polymer coverslip, tissue culture-treated, sterilized, individually packed
90 / Pack
£1,163.30 ex. VAT
