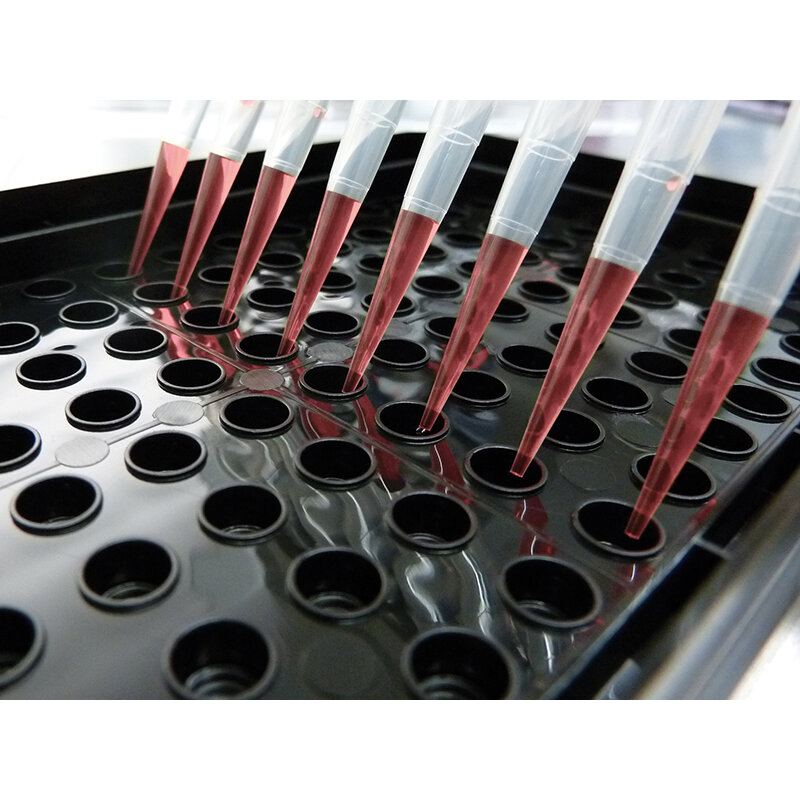

µ-Plate 96 Well 3D
- A high throughput screening plate with full ANSI/SLAS (SBS) and robotics compatibility
- Brilliant cell visualization without meniscus formation
- Cost-effective high throughput experiments, requiring only 10 µl of gel per well
A µ-Plate with 96 wells for high-throughput 3D cell culture and tube formation assays
- A high throughput screening plate with full ANSI/SLAS (SBS) and robotics compatibility
- Brilliant cell visualization without meniscus formation
- Cost-effective high throughput experiments, requiring only 10 µl of gel per well
Applications
- High throughput tube formation assays
- 3D cell culture
- Immunofluorescence staining
- Sprouting assays
- Live cell imaging of attached cells
Technical Features
- Meets ANSI/SLAS (SBS) standards
- 4 mm well within a 5 mm well
- Geometry enables pipetting of a homogeneous 0.8 mm thick gel layer*
- Provides homogeneous cell growth
- Compatible with staining and fixation
- Excellent optical properties for microscopy
- Compatible with multi-channel pipettes
- Made of biocompatible plastic material: no glue, no leaking
- Suitable for use with various types of gels* (e.g., Matrigel®, collagen, and agarose)
- Also available in a slide format: µ-Slide Angiogenesis
| Number of wells | 96 |
| Length / width | 127.7 / 85.5 mm |
| Height with / without lid | 16.5 / 14.4 mm |
| Well-to-well distance | 9.0 mm |
| Volume inner wells | 10 µl |
| Ø Inner wells | 4 mm |
| Depth inner well | 0.8 mm |
| Volume upper wells | 70 µl |
| Ø Upper wells | 5 mm |
| Growth area per inner well | 0.125 cm² |
| Coating area per inner well | 0.23 cm² |
| Well clearance | 0.82 mm |
| Inner well flatness | ± 5 µm |
| Whole plate flatness | ± 25 µm |
| Bottom: ibidi Polymer Coverslip | |
Variant
Pack/Size
Price
Qty
µ-Plate 96 Well 3D ibiTreat: #1.5 polymer coverslip, tissue culture-treated, black plate, sterilized, individually packed
15 / Pack
£788.81 ex. VAT
µ-Plate 96 Well 3D ibiTreat, Bulk Box 90: #1.5 polymer coverslip, tissue culture-treated, black plate, sterilized, individually packed
90 / Pack
£4,022.95 ex. VAT
