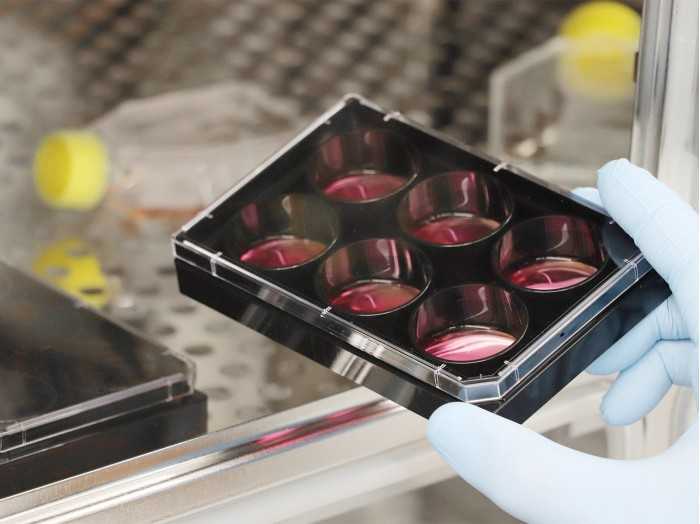

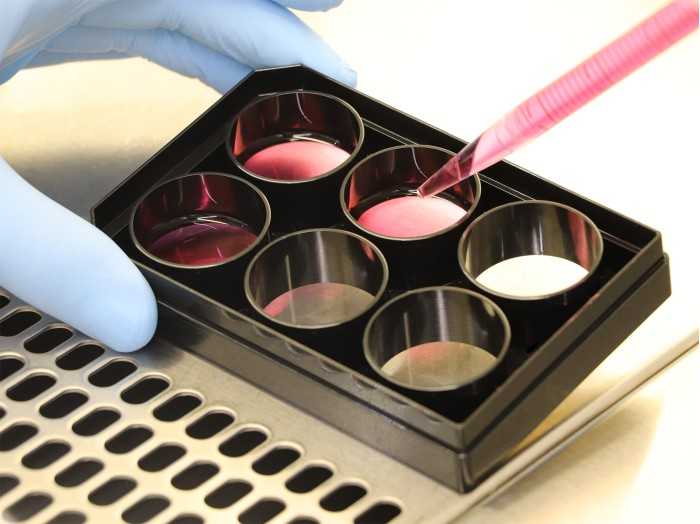

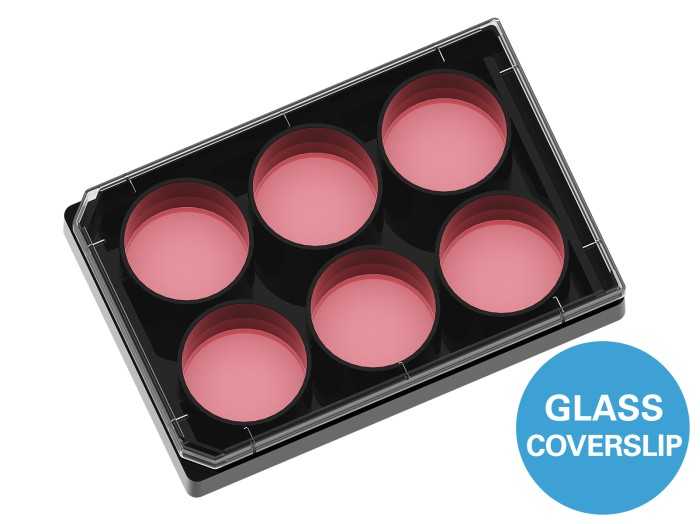

µ-Plate 6 Well Glass Bottom
A black 6 well plate with round wells and a glass coverslip for super-resolution and TIRF imaging
- A multiwell plate designed for super-resolution microscopy due to low thickness variability of the #1.5H Glass Coverslip Bottom
- Excellent inner well flatness and whole plate flatness
- Black walls provide low well-to-well crosstalk advantages for fluorescence microscopy
Applications
- Ideal for experiments with a moderate number of samples or cells
- Cultivate and maintain different cell lines under various conditions
- Large-scale transfection experiments
- Total internal reflection fluorescence (TIRF)
- Super-resolution microscopy (STED, SIM, (F)PALM, (d)STORM)
- Immunofluorescence staining
Technical Features
- ANSI/SLAS (SBS) standard format
- Ready-to-use for lab automatization and high-throughput with robotics, fluorescence scanners, and plate readers
- Six round wells with standard numbering (letters A–B and numbers 1–3)
- Excellent inner well flatness and whole plate flatness
- High-quality #1.5H Glass Coverslip Bottom, for super-resolution microscopy
- No autofluorescence
- Compatible with staining and fixation solvents
- Compatible with immersion oil
- Non-cytotoxic and biocompatible
- Sterile with single packaging
- Also available as µ-Plate 6 Well with a #1.5 Polymer Coverslip Bottom
The Principle of the µ-Plate 6 Well Glass Bottom
The Coverslip Bottom
The µ-Plate 6 Well Glass Bottom is designed with a high precision D263 M Schott glass, No 1.5H (170+/-5 µm) Glass Coverslip Bottom. This bottom provides exceptional optical properties for super-resolution or TIRF microscopy
| Length / width | 127.5 / 85.5 mm |
| Height with / without lid | 22.4 / 20.0 mm |
| Well-to-well distance | 37.5 mm |
| Well clearance | 0.35 mm |
| Single well diameter | 34.0 mm |
| Single well depth | 19.0 mm |
| Volume per well | 5 ml |
| Growth area per well | 9.1 cm2 |
| Coating area per well using 5 ml | 14.9 cm2 |
| Bottom | ibidi Polymer Coverslip |
Instructions
Product Flyers
Variant
Pack/Size
Price
Qty
µ-Plate 6 Well Glass Bottom, Bulk Box 90: #1.5H (170 ±5 μm) D 263 M Schott glass, black plate, sterilized, individually packed
90 / Pack
£3,412.84 ex. VAT
µ-Plate 6 Well Glass Bottom: #1.5H (170 ±5 μm) D 263 M Schott glass, black plate, sterilized, individually packed
15 / Pack
£669.18 ex. VAT
