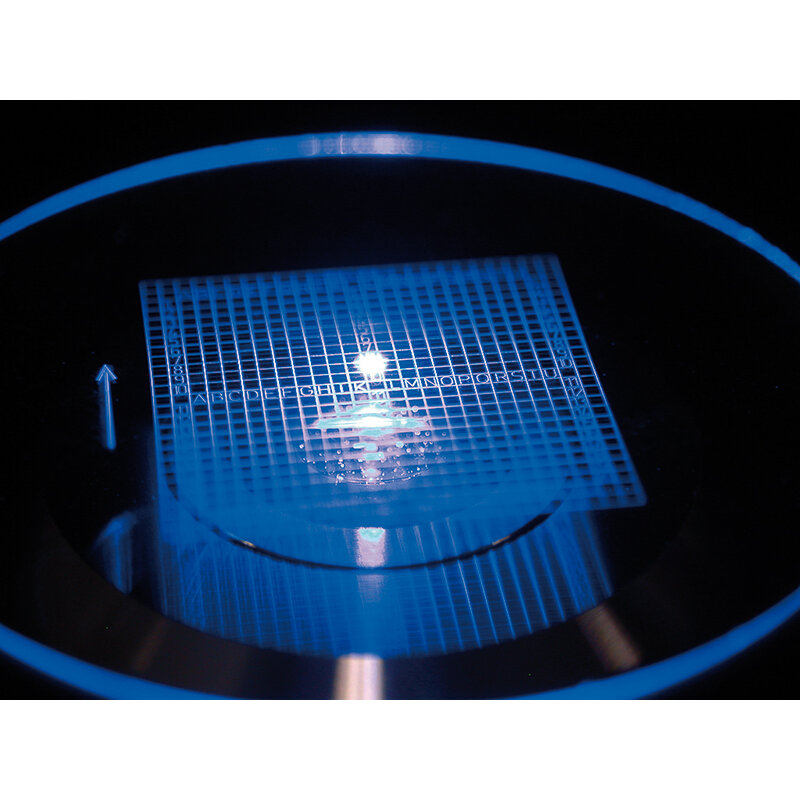

µ-Dish 35 mm, high Grid-50 Glass Bottom
A 35 mm imaging dish with a glass bottom and an imprinted 50 µm cell location grid
- Ideal for locating cells or cell clusters
- Easy cell counting per defined area
- Glass coverslip for TIRF and single molecule applications
Applications
- Locating cells or cell clusters, e.g., transfected cells for clone picking
- Counting events per defined area (e.g., when calculating transfection efficiency)
- Providing a reference structure for cell movements
- Treatment of distinct single cells, such as in microinjection
Technical Features
- Grid with 50 µm µm repeat distance
- Lettered and numbered 4 x 400 squares (A-U; 1-20)
- Grid and cells in one focal plane
- Bottom made from D 263 M Schott glass with a thickness of 170 µm +/- 5 µm
- Lid with lock position, which minimizes evaporation
- May require coating to promote cell attachment
- Also available in a Grid-500 version with ibidi Polymer Coverslip Dish 35 mm, high Grid-500 or µ-Slide 8 Well Grid-500
| Diameter dish | 35 mm |
| Volume | 2 ml |
| Growth area | 3.5 cm2 |
| Coating area using 400 µl | 4.1 cm2 |
| Diameter observation area | 21 mm |
| Height with / without lid | 14 mm / 12 mm |
| Bottom | Glass coverslip No. 1.5H |
Variant
Pack/Size
Price
Qty
µ-Dish 35 mm, high Grid-50 Glass Bottom, Bulk Box 200: Ø 35 mm, high wall (2 ml volume), grid repeat distance 50 µm, #1.5H (170 µm +/- 5 µm) D 263 M Schott glass, sterilized, individually packed
200 / Pack
£2,471.52 ex. VAT
µ-Dish 35 mm, high Grid-50 Glass Bottom: Ø 35 mm, high wall (2 ml volume), grid repeat distance 50 µm, #1.5H (170 µm +/- 5 µm) D 263 M Schott glass, sterilized, individually packed
30 / Pack
£436.19 ex. VAT
